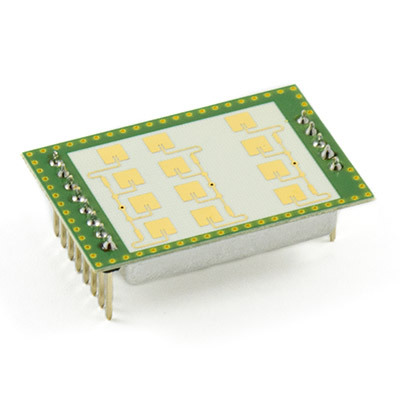

K-LD7 Radar Transceiver



– Small and low cost digital 24 GHz radar motion detector
– Measures speed, direction, distance and angle of moving objects
– Low current consumption
– Typical detection distance: 15 m for persons /30 m for cars
– Target list output over serial interface
– Integrated FFT signal processing with tracking
– 4 configurable digital outputs
– Power supply range from 3.2 to 5.5 V
– 3×4 patch antenna with 80°/34° beam aperture


Description



The K-LD7 is a fully digital low cost Doppler radar that can measure speed, direction, distance and angle of moving objects in front of the sensor. The digital structure and wide power supply range make it very easy to use this sensor in any stand-alone or MCU based application.
The sensor includes a 3×4 patch antenna radar front-end with an asymmetrical beam and a powerful signal processing unit with
four configurable digital outputs for signal detection information.
built-in tracking filter makes the sensor output even easier to use.
The serial interface features the possibility to read out a target list with speed, direction, distance and angle information of all moving
objects in front of the sensor or to digitally configure the sensors detection parameters




Applications



–  Distance triggered movement detection applications
– Simple gesture recognition
– Indoor and outdoor lighting control applications
– Pedestrian counting
– Traffic counting


- Door Opening


Indoor automation


 Automatic light activation
 Air-conditioning active if room is occupied


Movement detection

 Activate light on advertising boards
 Attract attention to an object


Intrusion Alarm


 Detection movement in room
 Measure distance to object




Speed measurement

 Inform driver of his actual speed
 Measure distances between vehicles




Data Sheet
