K-LC2 Dual Channel Radar Transceiver

바로 구매하기
장바구니 담기

※ 주문수량별 가격 (20개이상 주문시 상담 문의)








K-LC2 Dual Channel Radar Transceiver

Key Features:
24GHz K-band
80°x43° Pattern
FM Input
I and Q Channels
50MHz IF Bandwidth
25x25mm² small
6mm thickness


K-LC2 - The "big brother" of the successful K-LC1 single channel transceiver.

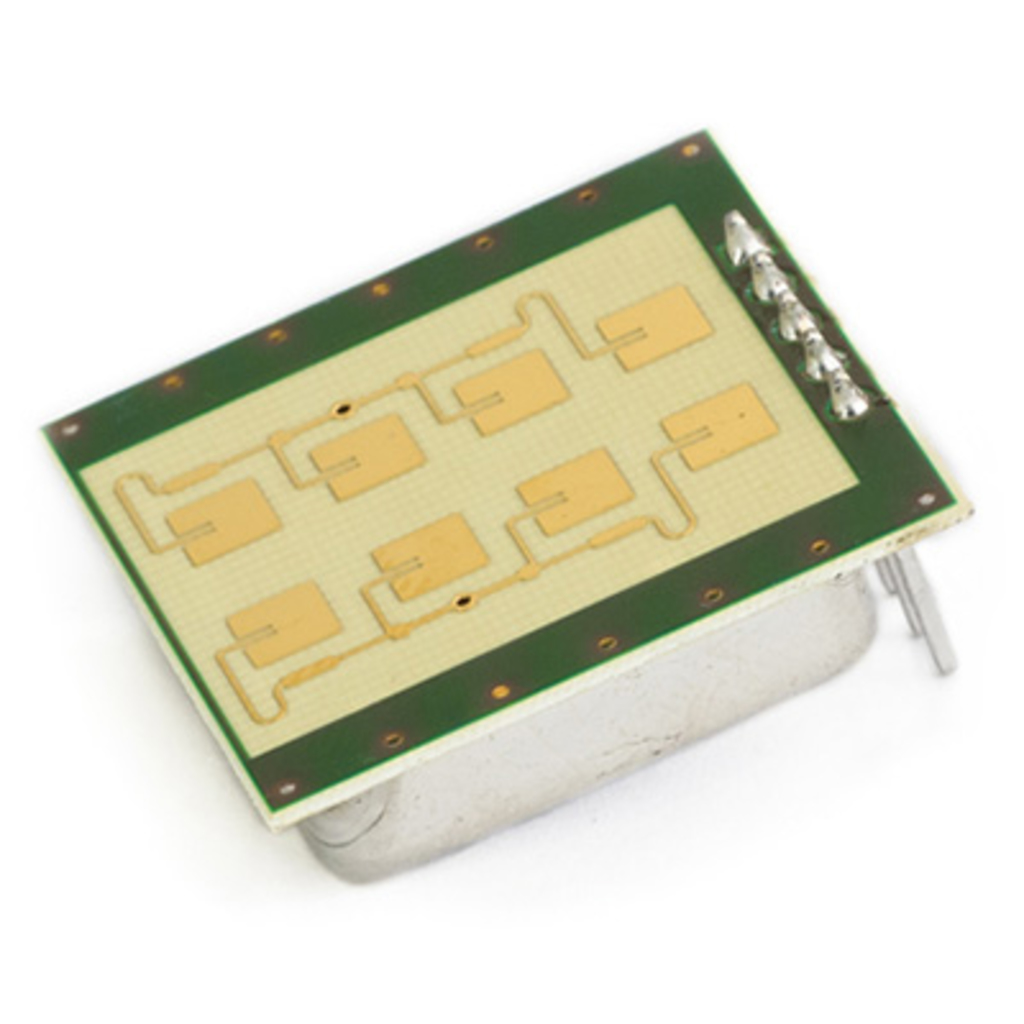

K-LC2 is a 8 patch stereo (dual channel) doppler module with an asymmetrical beam for lowcost short distance applications. Its typical applications are movement sensors in the security, automation and health domain. In building automation this module may be an alternative for infrared PIR or AIR systems thanks to its outstanding performance/cost ratio.

This module is extremely small and lightweight. Its IF bandwidth from DC to 50MHz and dual channnel architecture opens many applications.
FSK is possible thanks to the unique RFbeam oscillator design. This allows to use this lowcost module even in ranging applications.
A powerful starterkit with signal conditioning and visualization is available.


Small and powerful!
Dual channel "stereo" modules by RFbeam. Directional detection at lowest cost!
Best interference suppression capability thanks to the I/Q concept.
For more information kindly consult the download section.

Typical Applications:

Door Opening

Vital Sign monitoring

 Measure heartbeat
 Breathing rate

Indoor automation

 Automatic light activation
 Air-conditioning active if room is occupied

Intrusion Alarm

 Detection movement in room
 Measure distance to object

Movement detection

 Activate light on advertising boards
 Attract attention to an object

Speed measurement

 Inform driver of his actual speed
 Measure distances between vehicles
