K-DT1 Portable Radar Doppler Target
이메일 주소 (메뉴얼 전송용)
*
결제금액
0 원
K-LD1 Radar Doppler Target
Key Features:
• Handheld K-Band Doppler Target Simulator
• Battery Operation
• Programmable Speed Range 1 ... 300km/h
• Programmable Movement Direction
• Programmable Signal Time
• 3 Programmable Presets
• Standalone or Hosted Operation
• USB Interface to Hostcomputer
• Compact and Rugged Construction
• DT1-Remote PC Software included
• Battery Operation
• Programmable Speed Range 1 ... 300km/h
• Programmable Movement Direction
• Programmable Signal Time
• 3 Programmable Presets
• Standalone or Hosted Operation
• USB Interface to Hostcomputer
• Compact and Rugged Construction
• DT1-Remote PC Software included
Description

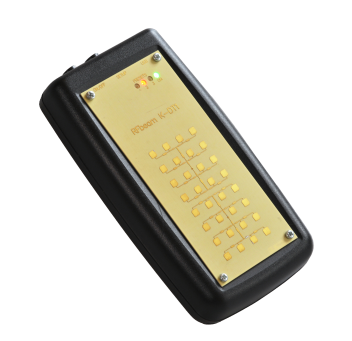

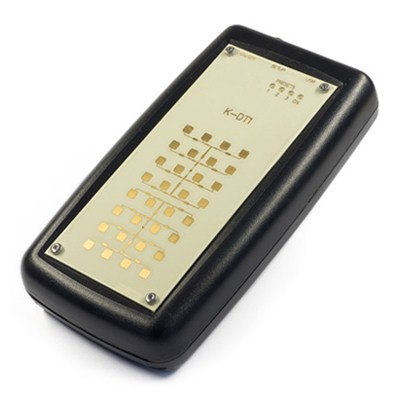

K-DT1 is a portable moving target simulator for K-band Radar transceivers. It can be used for calibrating and testing speed displays, door openers, safety systems and other radar based Doppler sensors.
K-DT1 uses a circular polarized antenna. You can use K-DT1 in any orientation independently of the sensor orientation.
A software generated modulation signal allows generation of low distortion and directional Doppler signals from 44Hz to 13.4kHz corresponding to speeds from 1km/h to 300km/h
Applications
• Mobile Test Equipments
• Production Final Inspection
• Incoming Components Inspection
• System Tuning and Adjustment
• Production Final Inspection
• Incoming Components Inspection
• System Tuning and Adjustment
Data Sheet |
