60GHz

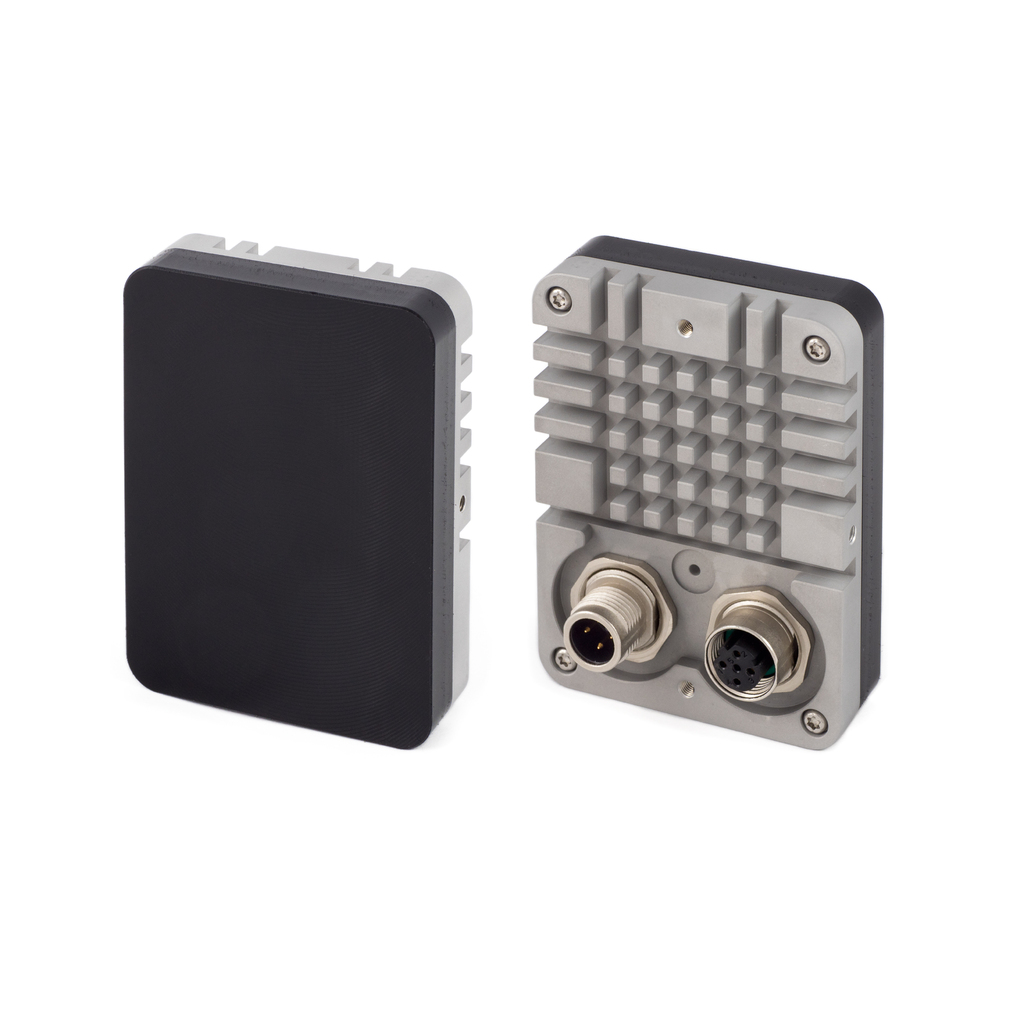

V-MD3 Digital 3D Radar Transceiver

이메일 주소 (메뉴얼 전송용)

＊

결제금액

0 원

바로 구매하기

장바구니 담기

상세정보
제품후기
제품문의
배송/교환/반품

■ V-MD3 Digital 3D Radar Transceiver

Key Features:

- 61 GHz 3D FMCW radar with digital signal processing

- Measures speed, direction, distance and angle of multiple static or moving objects

- Typical detection distance: 30 m for persons / 80 m for cars

- Target list output over 100BASE-T Ethernet

- Integrated range Doppler processing with tracking

- 2 configurable digital outputs with overcurrent protection

- Wide power supply range from 8 to 32V

- 3 TX and 4 RX patch antennas with 60°/36° beam aperture

- Rugged water-proof housing with M12

- connectors for harsh conditions

■ Description

The V-MD3 is a high-end 3D radar transceiver with integrated signal processing and tracking algorithms. It can measure the speed, direction, distance and angle (in azimuth and elevation) of moving and static objects.

The digital structure and wide power supply range make it very easy to use this sensor in any stand-alone or MCU based application.

The sensor contains a radar front end with 3 TX and 4 RX patch antennas paired with a powerful FPGA signal processing chain. It has an Ethernet connection for reading out data and for sensor configuration as well as two configurable digital outputs for simple area surveillance or collision avoidance systems. It is possible to read out sensor data from different processing stages, which offers maximum flexibility for easy integration in different customer environments.

There is no need to write own signal processing algorithms or handle small and noisy signals. This module comes with comprehensive functionalities for quick and simplified object detection, observation and measurements. The IP-65 housing with M12 plugs further simplifies integration in harsh environments.
